Switch beetween guide bushing and non-guide bushing type (standard) and machine bar stock up to ∅ 25 mm (optional)

Citizen L20 Swiss Type Lathe

MACHINE INFORMATION

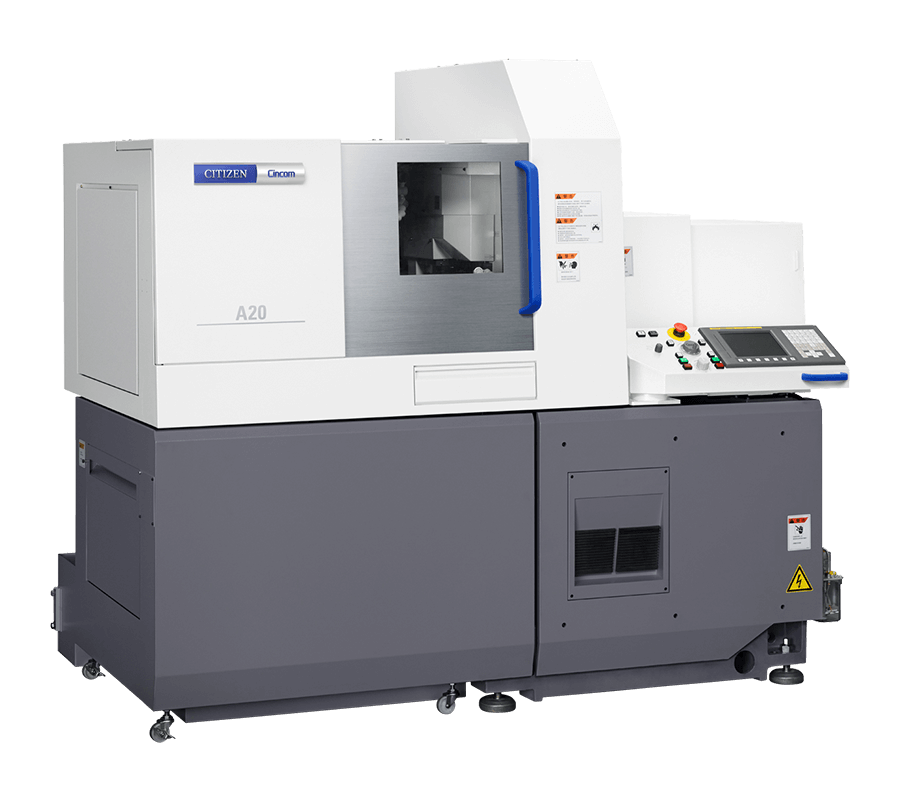

Acclaimed for its excellent cost to performance ratio, this next-generation A20 has evolved as a 5-axis machine (plus C1 & C2 as MCC standard) for ∅ 20 mm applications, with the advantage that it can be used with or without the easily mounted and removed guide bushing.

The high-speed 10,000 rpm spindle enables optimized machining operations on smaller diameter bar material. The machining length per chucking is now extended to 200 mm enabling the number of re-chuckings and therefore cycle times to be reduced when machining long workpieces. As an option, bar material up to ∅ 25 mm can be machined extending the range of workpieces.

With its Fanuc Series 32i Model B System Control, the A20 offers quick setups and high speed, high precision performance. And with the additional X2 axis, front/back simultaneous machining is possible.

STANDARD NC FUNCTIONS

  • NC unit dedicated to the A20
  • 8.4 inch color LCD
  • On-machine program check function
  • Operating time display function
  • Preparation function
  • Spindle speed change detector
  • Nose radius compensation
  • Constant surface speed control function
  • Program storage capacity: 80 m (approx. 32 KB)
  • Product counter indication (up to 8 digits)
  • Automatic power-off function
  • Continuous thread cutting function
  • Pre-processing function
  • Tool offset pairs: 49
  • Sub micron commands
  • Spindle synchronized function
  • High speed rigid tapping function
  • Chamfering, corner R
  • Canned cycle drilling
  • Drawing dimension direct input
  • Multiple repetitive cycle for turning
  • User macros
  • Y-axis offset
  • Front/Back spindle C-axis function
  • Tool life management I
  • Tool life management II
  • Network I/O function
  • Inch command
  • Sub/inch command
